Complete Granulation Line with Collette GRAL600, Wet Mill in standard 2 bar explosion pressure shock resistantconstruction Capacity: approx. 200- 250kg/ batch Volume/ usable 500l

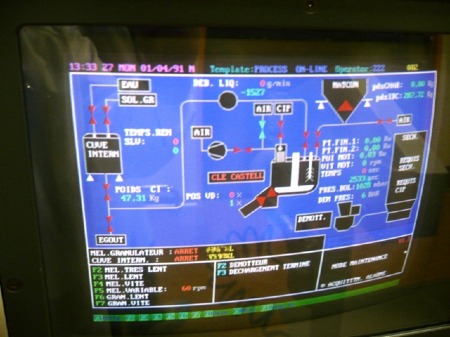

I. Used Collette Gral -600High Shear Mixer Granulator in very good conditionA. Acceptability of design and construction Speciallydesigned, constructed and manufactured for pharmaceutical applications, thisGral 600 High Shear Mixer Granulator sets the standard for ProductionPerformance, Elegance in Production and Good Manufacturing Pratice ( G.M.P.).In other words, a sanitary and easy to clean construction.AllProduct contacting parts are in stainless steel AISI 316 L, mirror polishfinish ( grit 400,RA0,45 my). All parts not in contact withthe product are in stainless steel AISI 304, satin polish finish 8 grit 220, RA1,45 my) Machinebody executed for through wall installation. Withwet mill underneath the Gral discharge valve. Movable head, this incl. ahydraulic unit for driving the motors, hydraulic motors allowing variable speedof the mixer and the choppers and hydraulic motors for movement the bowl andthe head. TheGral High Shear Mixer Granulator is linked through a wet mill to the fluid beddryer. Thehydraulic system is behind the wall in the technical area. Controlwith Siemens PLC System - With show the processparameters and the flow diagram- Control of the processparameters- Power meter and power consumption of the mixing arm, whichis the most important parameter for the granulation process.-Separate electrical andelectronic cabinet in the technical area. OperatingSpecification BowlCapacity 600ltr WorkingCapacity
200-500ltr. DualMixer
Speed 95and 140 rpm DualGranulator Speed 1300and 2600 rpm Compressed air 4 bar min. 80Nm³/ h
Power supply 50KW/50Hz/3Ph Weigth approx. 3500kg
II. Wet Mill Conical Milling Device- All stainless steel construction ; non contact partsin AISI 304 stainless steel, contact partsIn AISI 316 L stainless steel.- Unit polished to a average 150 satin finish ; all noncontact parts welds cleaned and polished; all material contact welds groundflush and polished, with mirror polished contact surface.8” ( 203mm) diameter infeedopening without grid bar ( to allow for easy flow of wet Granules, however equipped with sensing switches Impeller speed: 100rpmExpand Quick release “ swingaway” screen retaining shroud with triclamp connection.- Special hinge frame- Sensing switches to prevent operation if guard and/ orscreen retaining shroud and/orChute are not in place.- Impeller MP, 316L stainless steel , screen 220 G- Energy efficient, Explosion proof motor, 7,5 KW (Class I , Division 1 ; Group D) - Control integrated in the PLC contro III.
WIP System for the Gral 600, Wet Mill ( In Line)
Please asked for detailed offer and price and conditions

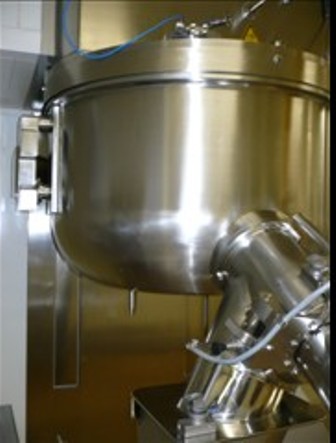

High Shear Mixer Gral 600
